Axial Flow Pump
08.
Applications
High efficiency in high flow & low head pumping
- Effluent Treatment Plant
- Sewage Treatment Plant
- Pharmaceutical Industries
- Petroleum Refineries
- Chemical Process Industries
- Salt Industries
- Distilleries
Special Features
- Back Pullout construction for ease of onsite maintenance.
- Dynamically Balanced Shaft and Impeller as per ISO Standard.
- Robust Construction, long life for continuous operation.
- Cartridge type Double Mechanical Seals.
- Bearing Isolator can be provided on request.
- Custom design for specific requirements.
- Capacities available from 100 m³/hour to 6000 m³/hour.
- Head from 2.5 Meters to 3.5 Meters water column.
- Operating Temperature up to 100 Degree C
- Available in Austenitic Stainless Steels (Grade 316 L and 304) and Duplex Stainless Steels.
- Conforms to ASME Codes.

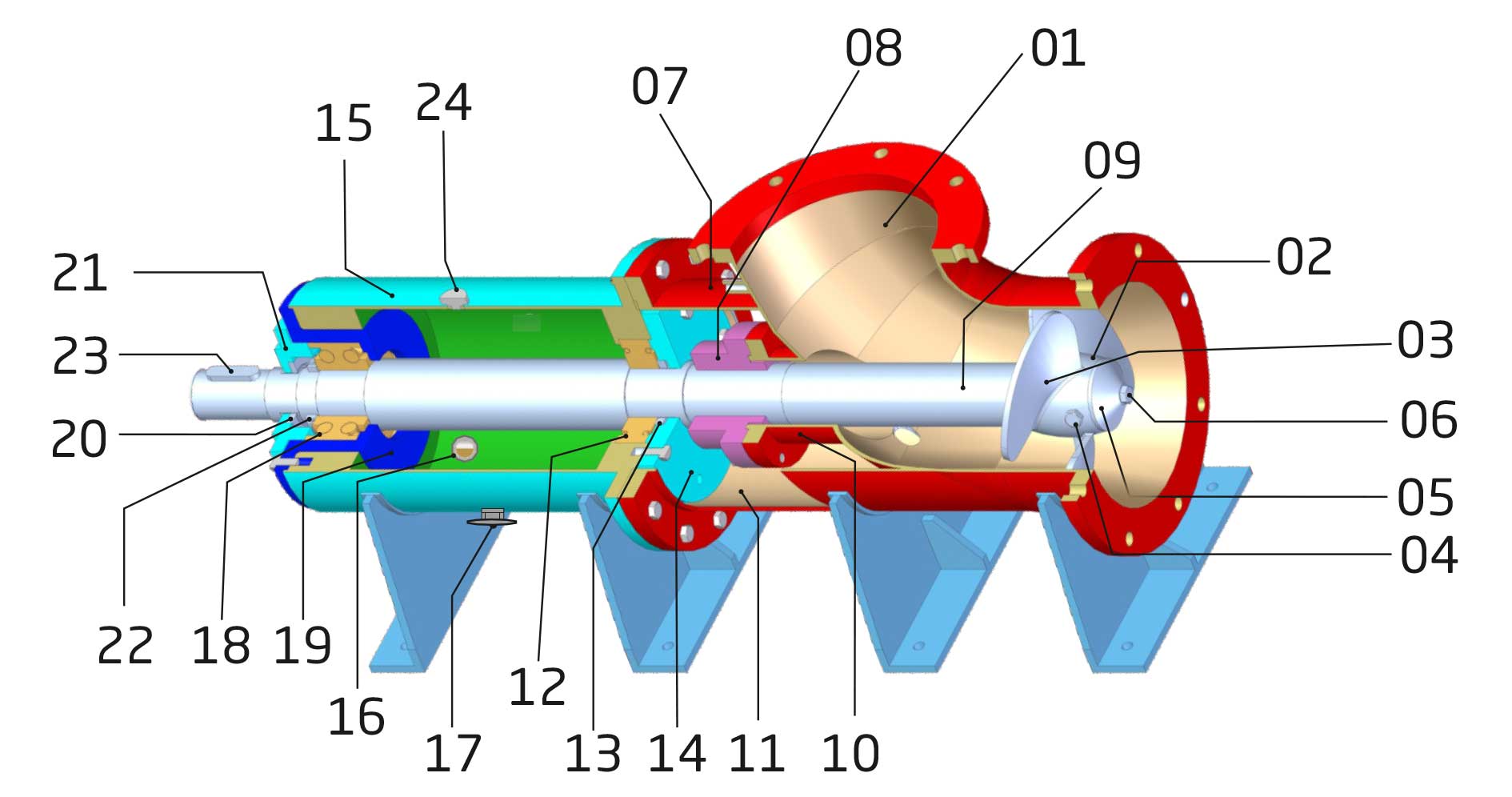

SECTIONAL VIEW
| NO. | DESCRIPTION |
|---|---|
| 01 | Cashing |
| 02 | Hub for Impeller |
| 03 | Impeller |
| 04 | Bolt for Impeller Locking |
| 05 | Impeller Lock Plate |
| 06 | Bolt for Impeller Lock Plate |
| 07 | Half Coupling with Plug for Flushing |
| 08 | Mechanical Seal |
| 09 | Shaft |
| 10 | Mechanical Seal Mounting Neck |
| 11 | Bearing Housing Mounting Neck |
| 12 | Bearing for Inboard |
| NO. | DESCRIPTION |
|---|---|
| 13 | Oil Seal for Inboard Bearing/ Speedi Sleeve |
| 14 | Cover for Bearing Housing (Inboard) |
| 15 | Bearing Housing Main Body |
| 16 | Oil Level Indicator |
| 17 | Drain Plug |
| 18 | Bearing for Outboard |
| 19 | Outboard Bearing Housing |
| 20 | Oil Seal for Outboard Bearing/ Speedi Sleeve |
| 21 | Cover for Outboard Bearing |
| 22 | Rear Check Nut for Shaft |
| 23 | Key for Pulley |
| 24 | Filler Plug |
